Flatline PRO Garage Gym Flooring Set – 45m² (45× 1m×1m×20mm Tiles)
| Depth: | 20mm |
|---|---|
| Length: | 1m |
| Width: | 1m |
Description
Flatline PRO 45m² Garage Gym Flooring Set – Built for Bigger Spaces

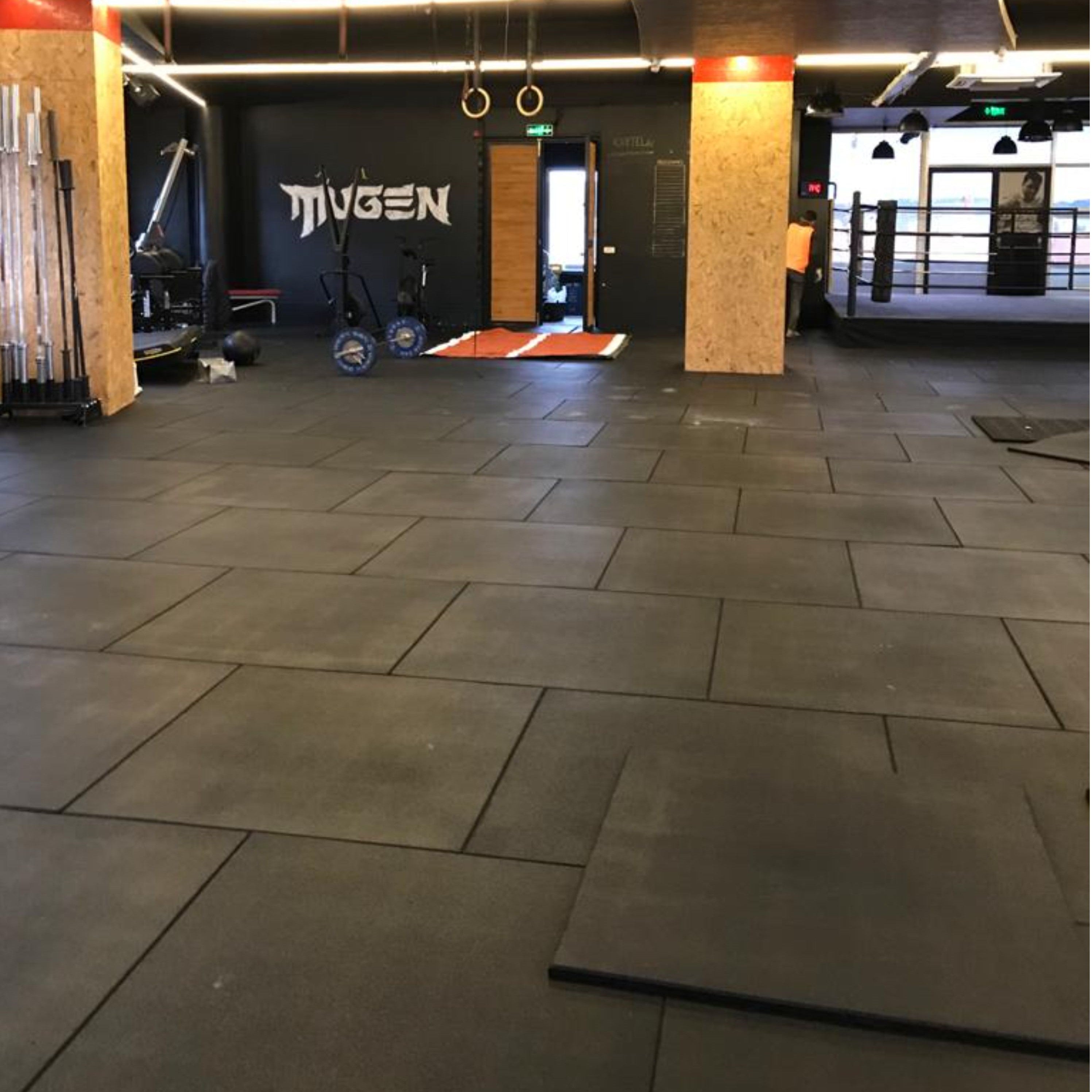

This 45-tile bundle covers 45m², making it ideal for large garage conversions, personal training studios, or full-room gym flooring. Each 1m x 1m tile is 20mm thick, cold-pressed for a precision fit, and made from durable, low-odour recycled rubber. Heavy enough to stay in place without adhesive in most installs, and tough enough to handle racks, sleds, and high-impact zones.
- ✅ 45m² coverage with 45 x 1m² tiles
- ✅ 20mm thick – ideal for dropped weights, sled work & cardio gear
- ✅ Cold-pressed for tight fit – tolerance ±0.5%

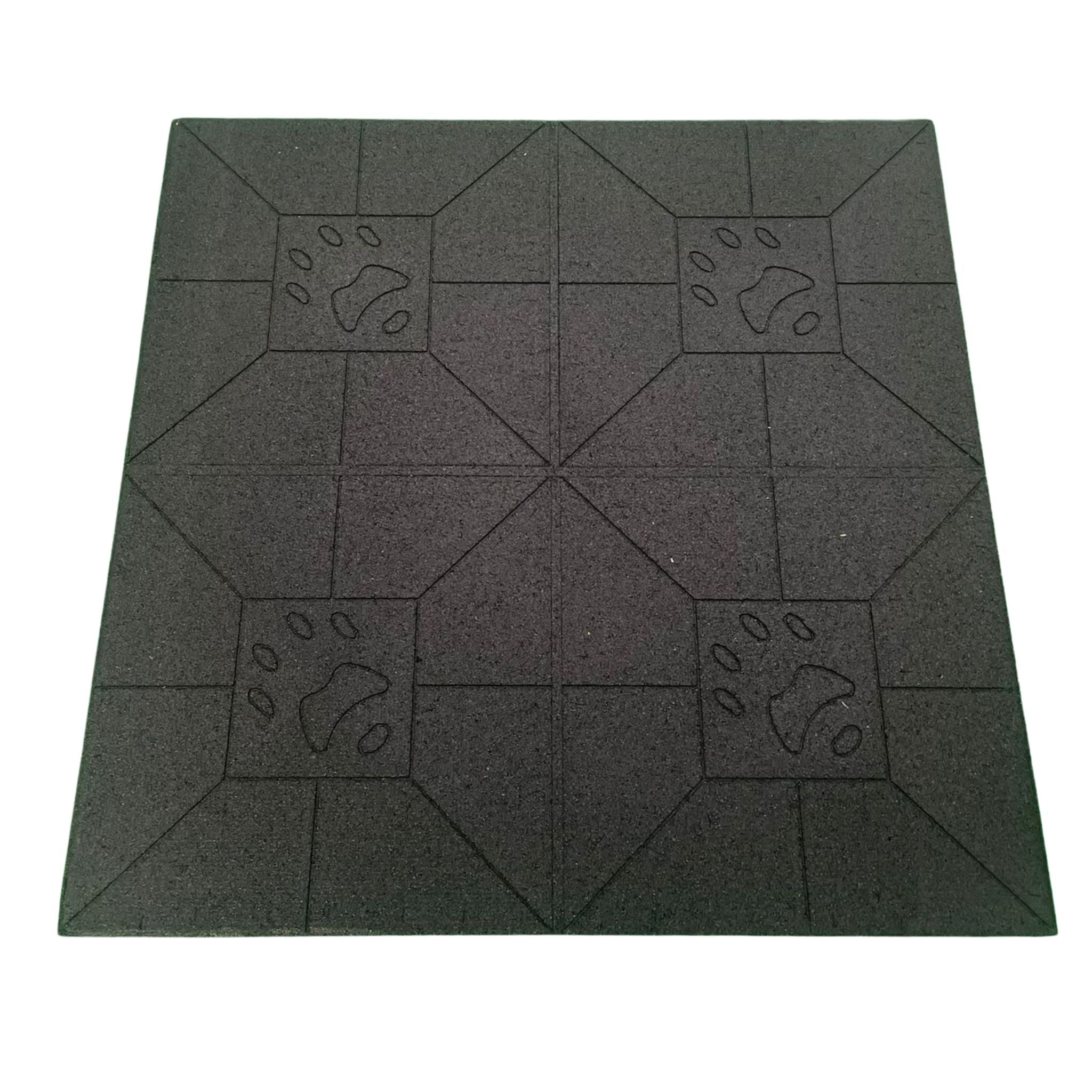

- ✅ Anti-slip surface – certified R10 grip even under load
- ✅ VOC tested & REACH compliant – safe for enclosed use
- ✅ Free UK mainland delivery on orders over £99.99
Best for:
- Garage gyms with lifting & functional zones
- Large home gyms or training outbuildings

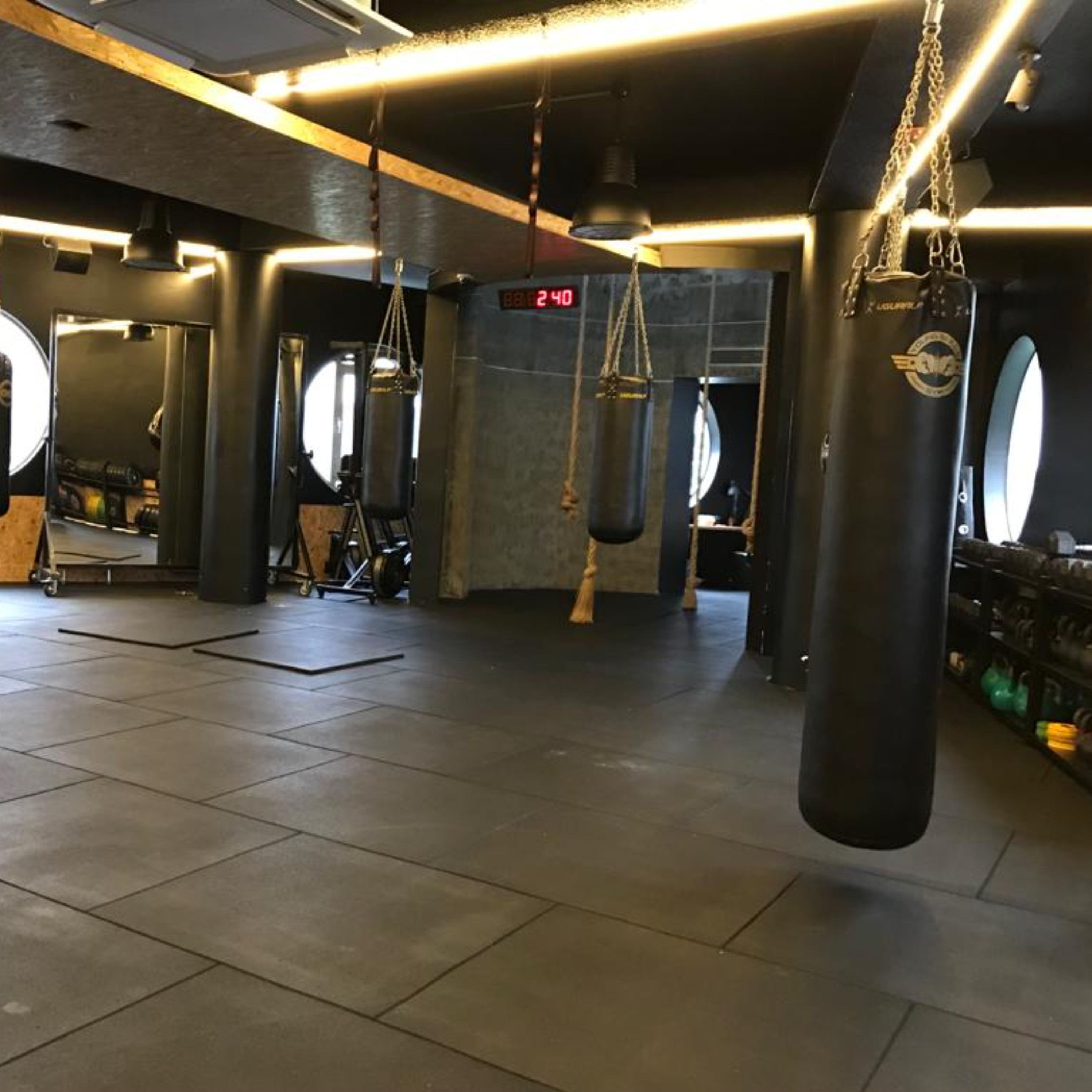

- PT studios and commercial prep spaces
📏 Tile Specs (each):

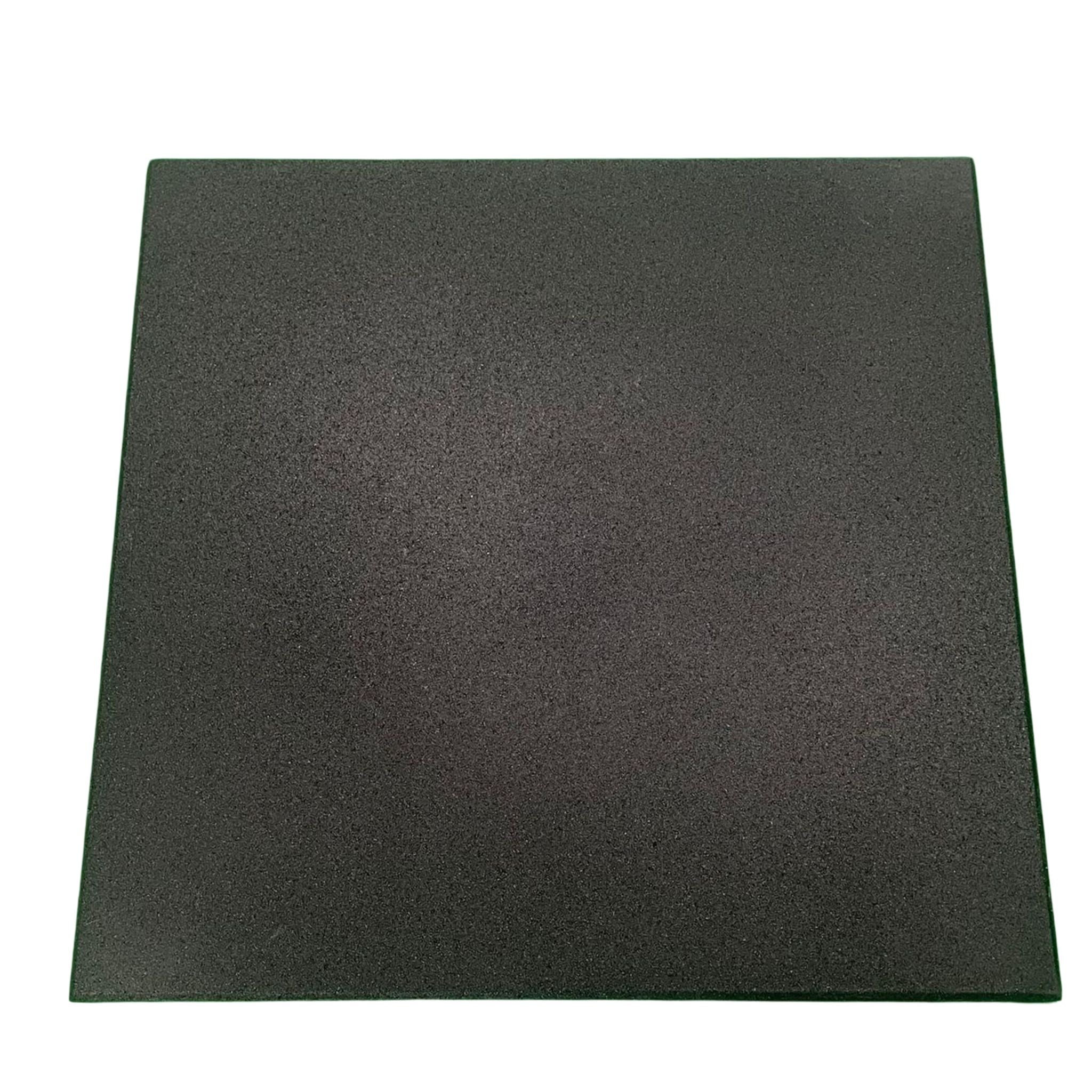

- Size: 1000mm x 1000mm
- Thickness: 20mm
- Weight: approx. 18.5kg
- Density: 950–980 kg/m³
- Slip Rating: R10 (DIN 51130), Class DS (EN 14041)
- Sound reduction: up to 23 dB
Installation Tips:
- Use a brick pattern for clean joins
- Let tiles acclimatise for 12–24 hours
- Cut with a Stanley knife and straight edge
- Use adhesive only in high-traffic zones if needed
📦 Choose the perfect fit for your space:
- 🔹 Buy individual tiles – order exactly what you need
- 🔹 13m² Set – perfect for single garage gyms
- 🔹 18m² Set – extra room for racks and cardio
- 🔹 27m² Set – ideal for double garages
- 🔹 36m² Set – great for extended garage layouts
- 🔹 45m² Set – covers larger custom builds
- 🔹 55m² Set – fits most triple garages or PT studios
Certificates
🔒 Certified Flooring Quality – Backed by Industry-Recognised Testing
At Cannons UK, we prioritise transparency, safety, and compliance. Every tile in our Flatline PRO rubber flooring range is backed by trusted, independently verified certifications — ensuring it's safe for indoor use in home gyms, garages, PT studios, and commercial spaces.
From VOC emissions and REACH compliance to fire ratings and ISO-certified manufacturing, we give you clear, traceable proof that your flooring meets the highest UK and EU standards.
Whether you're fitting out a home gym or a public fitness facility, choosing certified flooring ensures insurance compliance, low odour, and safe long-term use — with no nasty chemicals or surprises.
📄 Our Certifications Include:
- ✅ REACH Compliant – free from restricted or harmful substances
🔗 View REACH Certification - ✅ VOC Tested – ultra low emissions, safe for enclosed spaces
🔗 VOC Results - ✅ Impact & Sound Insulation Tested – up to 23dB reduction in impact noise
🔗 Sound Test Certificate - ✅ CE Certified Factory – compliant with EU manufacturing and safety standards
🔗 Learn About CE Marking - ✅ ISO 9001:2015 – quality management system
🔗 View Certificate - ✅ ISO 50001:2024 – energy management and sustainability
🔗 View Certificate - ✅ EN ISO 5470-1:2001 – abrasion resistance for high-wear areas
🔗 View Test Report - ✅ ISO 14001:2015 – environmental management
🔗 View Certificate - ✅ ISO 45001:2018 – health and safety management
🔗 View Certificate
If you need copies of these certifications for building control, architects, insurers, or tenders – just 📩 contact us. We're happy to help.
Delivery
🚚 Free Next-Day Delivery – UK Mainland Orders Over £99.99
Eligibility:
Orders placed before 1 PM (Monday to Friday) and totalling over £99.99 qualify for free next-day delivery to most UK Mainland addresses.
Exclusions:
Some parts of Scotland may incur a delivery surcharge. Any additional charges will be shown at checkout.
Delivery Schedule:
Deliveries are made Monday to Friday.
Next-day delivery has a 98% success rate, but please note it cannot be guaranteed due to courier limitations.
International & Offshore Orders:
For delivery to Northern Ireland, offshore islands, or locations outside the UK Mainland, please contact us:
📧 Email: sales@cannonsuk.com
📞 Phone: 01379 687768
FAQ
❓ Frequently Asked Questions – 45m² Garage Set
🔧 Do I need adhesive for the full 45m² install?
No adhesive is usually required. Each tile weighs around 18.5kg and fits tightly due to our cold-press process. For commercial use or edge stability, you can optionally use tape or edging strips.
📏 What are the dimensions and tolerances?
Each tile is 1000mm x 1000mm x 20mm. Thanks to cold pressing:
– Length/width tolerance: ±0.5%
– Thickness tolerance: ±1%
🦶 Are the tiles anti-slip?
Yes – Flatline PRO is rated R10 slip resistance (DIN 51130) and Class DS (EN 14041). It offers excellent grip for high-traffic or heavy-lifting areas.
🧼 How do I clean this much flooring?
Sweep or vacuum regularly. For deep cleaning, use a mop with warm water and a pH-neutral cleaner. Avoid bleach or harsh chemicals. If chalk is used in the gym, always vacuum first before mopping.
📄 Cleaning Guide
🔇 Will this flooring help with noise reduction?
Yes. The dense SBR rubber reduces impact sound by 18–23 dB, depending on your subfloor. Ideal for residential garages and studios that need noise control.
🧪 Are the materials tested and certified?
Absolutely – Flatline PRO tiles are REACH compliant and VOC tested for low emissions. Safe for use in enclosed gym environments and insurance-compliant for many commercial setups.
🛠️ Can I cut the tiles to fit walls or corners?
Yes – simply use a sharp Stanley knife and metal straight edge. Score several times and snap for clean edges. For curves, use multiple passes with more care.
📦 How are the 45 tiles delivered?
The 45m² set is shipped flat on a pallet. Orders placed before 1 PM qualify for free next-working-day UK delivery on mainland orders over £99.99.
Samples
Specification
📊 Technical Specifications – Flatline PRO Rubber Gym Tiles
🔇 Sound Reduction:
Improves impact noise by approx. 18–23 dB, depending on subfloor and installation
🦶 Anti-Slip Ratings:
- R10 Slip Resistance (DIN 51130)
- Class DS (EN 14041 – safer indoor flooring rating)
⚡ Electrical Properties:
- Antistatic: –0.7 kV
🧪 Material Composition:
- Recycled SBR rubber, bonded with low-VOC polyurethane
- REACH compliant and VOC tested
📏 Physical Specs:
- Tile size: 1000mm x 1000mm
- Thickness: 20mm
- Weight per tile: ~18.5kg
- Bulk density: 950–980 kg/m³
- Tensile strength: 1.38 N/mm²
- Force reduction: 10–18%
- Max drop weight: 150kg
- Length tolerance: ±0.5%
- Thickness tolerance: ±1%
🔥 Thermal & Fire Resistance:
- Working temp: –30°C to +80°C
- Short-term tested: Up to +300°C
- Thermal conductivity: 0.17 W/(m·K)
- Expansion coefficient: 23.1×10⁻⁵/°C
- Fire rating: Class B2 (EN 13501)
💧 Environmental Properties:
- Vapour permeable
- Resistant to water, diluted acids/alkalis
- UV-resistant, chemically neutral (EN 423)
